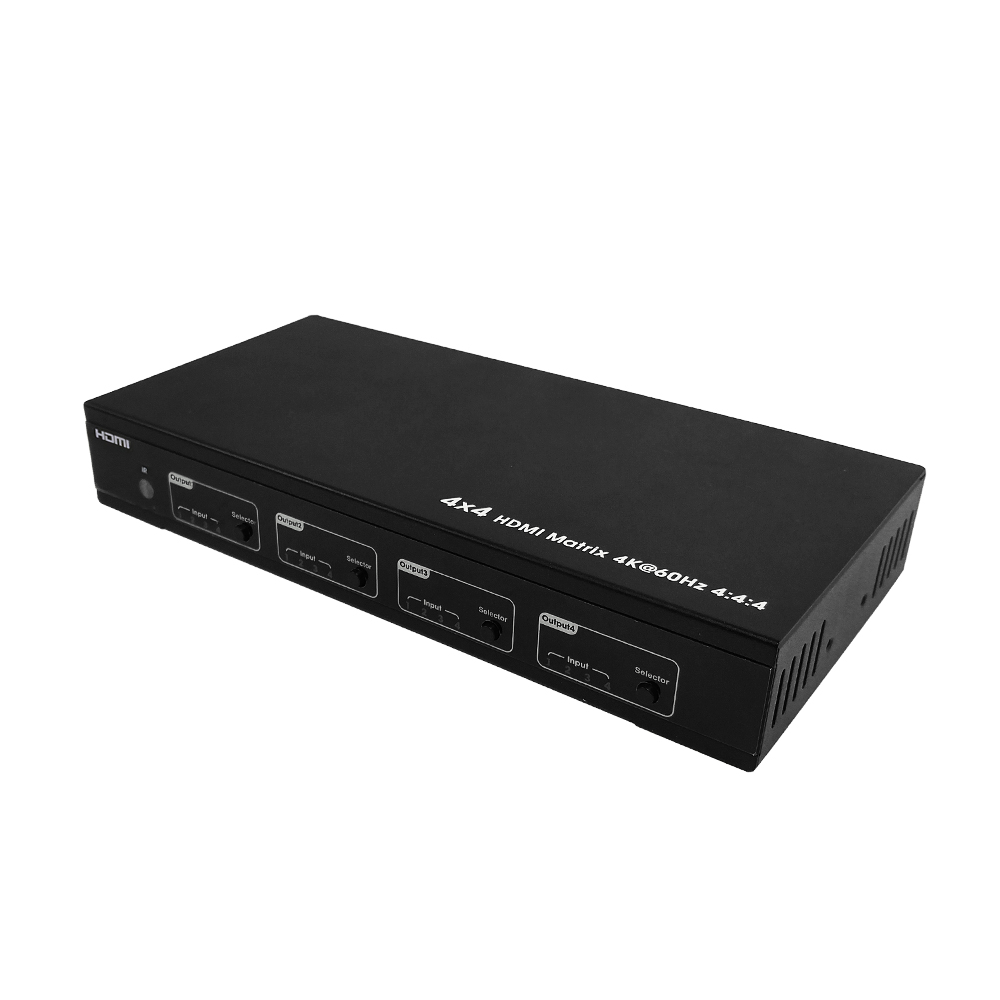

HSS0404-IR: 4×4 HDMI 4K Matrix – 4K*2K@60Hz – YUV 4:4:4 – 18Gbps – HDCP 2.2in/2.2out – IR control

Description

• Model: HSS0404-IR
• Warranty note: 180 Days Limited

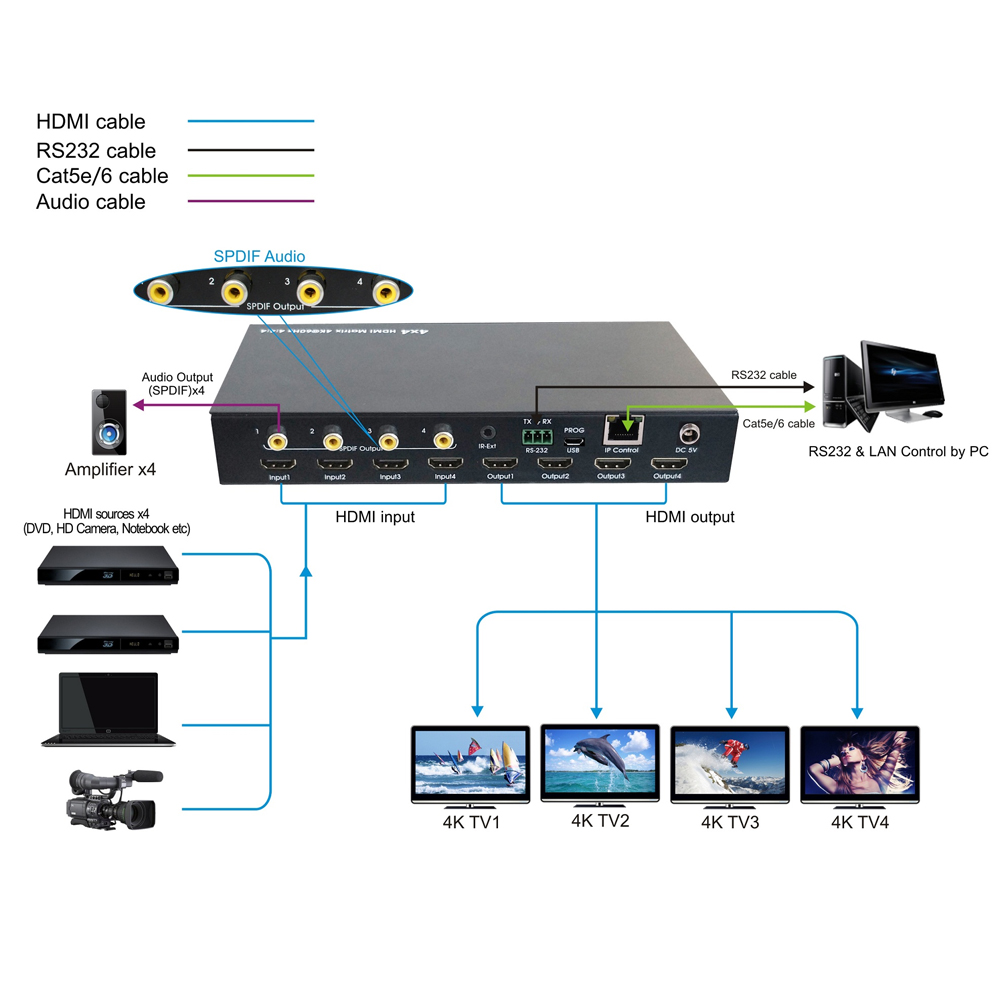

• This 4×4 HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.


  Physical Characteristics
  Color	Black
  Housing	Metal Enclosure
  Operating Temperature	-0° ~ 40°C
  Power
  Input Voltage	125 V
  Power Supply (Transmitter)	12 Volt DC Converter
  Connector(s)
  Input	4 x HDMI Female
  Output	4 x HDMI Female
  Performance
  Video	480i/ 480p/ 576p / 576i / 720p/ 1080i/ 1080p@60Hz / 4K*2K@60Hz
  Audio	Dolby True HD, DTS-HD Master Audio
  HDMI Version	HDMI 2.0 (4K@60Hz YUV4:4:4)
  Bandwidth	18 Gbps
  HDCP Compliant	Yes, HDCP2.2 input, HDCP2.2 output
  3D Compliant	Yes
  IR Control	Yes, 38 kHz
  EDID Management	Yes
  HDR Support	Yes
  Environmental
  RoHS	Yes
  Certification(s)
  CE	Yes
  FCC	Yes
  Packaging Information
  Package Quantity	1
  Product Weight	5.7 lbs [2.6 kg]
  Contents
  Included in Package	1 – HDMI Matrix
  	4 – IR Tx
  	4 – IR Rx
  	1 – IR Ext
  	1 – DC12V Power Adapter
  	2 – Brackets
